In the design of large commercial and institutional structures—such as sprawling malls, complex hospital campuses, and airports—structural movement is not a possibility; it is a certainty.

Concrete shrinks, temperatures fluctuate, and buildings settle. During a seismic event, these structures must be allowed to move independently to prevent catastrophic damage.

This is the role of the expansion joint covers—specialized mechanical systems designed to bridge the gaps between structural elements while maintaining safety, aesthetics, and functionality.

For project stakeholders, selecting the right access flooring system for these joints—from the floor to the wall and ceiling—is paramount. This guide covers the essential types, materials, and safety requirements, including seismic performance and fire rating, necessary for successful installation.

The Critical Need for Expansion Joint Covers

A structural expansion joint is a necessary gap that runs through the entire building structure—including the slab, walls, and roof—separating sections to accommodate movement caused by various factors:

• Thermal Movement: Expansion and contraction due to temperature variations.
• Seismic Activity: Large, multi-directional movement during an earthquake (necessitating seismic joint covers).
• Wind Sway: Deflection in very tall structures.
• Settlement: Vertical movement as the structure compresses under its own weight over time.

In high-traffic environments like hospitals and malls, the cover system must not only allow movement but also ensure the safety of pedestrians and maintain the aesthetic continuity of the space.

Choosing the Right System: Floor Expansion Joint Solutions

The floor expansion joint cover bears the highest load and faces the greatest challenge in terms of pedestrian safety and durability.

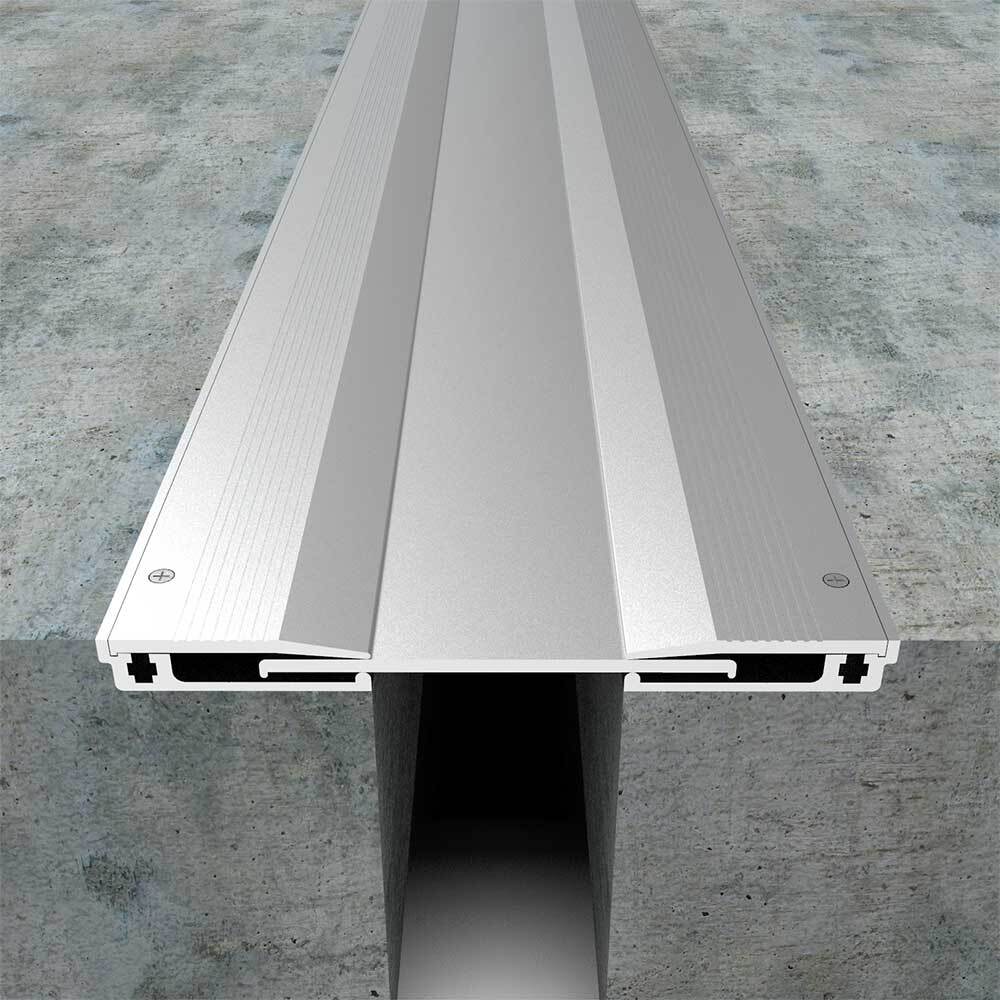

Material Selection: Aluminum Joint Covers

While stainless steel and brass are sometimes used, aluminum joint covers are the material of choice for most commercial applications due to a crucial balance of properties:

• Durability and Load Capacity: Aluminum alloys (often extruded 6063-T6) provide exceptional strength-to-weight ratio, allowing the cover plate to withstand heavy foot traffic, equipment carts (especially critical in hospitals), and even light vehicle loads in service corridors.

• Corrosion Resistance: Aluminum requires minimal maintenance and does not rust, which is ideal for areas prone to cleaning or moisture.

• Aesthetics: Aluminum allows for flexible finishing options, including clear anodizing, painting, or embedding carpet/tile inserts directly into the top plate for seamless integration with the surrounding finish.

Design Types for Floor Expansion Joint

The design complexity depends on the expected movement:

Joint Type	Movement Capacity	Typical Application
Flush Mount	Small to moderate (up to 100mm)	Malls, offices, where a minimal profile is desired.
Surface Mount	Small (often used for retrofits)	Requires careful ramped edge to prevent tripping hazards.
Seismic/Heavy Duty	Large, multi-directional (up to 500mm or more)	Data center corridors, hospitals, and regions prone to earthquakes. Requires robust central plate and anchor system.

Addressing the Vertical Plane: Wall/Ceiling Joint Covers

Unlike the floor system, wall/ceiling joint covers primarily manage lateral (horizontal) movement while dealing with aesthetic challenges and complex ceiling interfaces.

In hospitals, the wall/ceiling joint system must be particularly robust:

• Hygiene: Covers must be designed with minimal exposed gaps to prevent dust accumulation and allow for easy cleaning and disinfection.
• Aesthetics: The covers often need to be paintable or feature flush profiles to blend into sterile environments or high-end retail finishes.
• Seismic Flexibility: For large joints, the system typically uses a sliding or “accordion” mechanism that hides the void but allows for significant movement in all directions without separation from the wall structure.

When choosing seismic joint covers for a wall or ceiling, the material surrounding the gap (gypsum board, tiling) must also be detailed correctly to avoid cracking when the joint moves.

The Safety Imperative: Fire Barrier Joint Systems

The structural joint gap is, by nature, a clear pathway for fire and smoke to travel rapidly between fire-rated compartments of a building.

Therefore, a complete expansion joint solution must incorporate a fire barrier joint system.

A fire barrier joint system is a separate, tested component installed within the joint gap (beneath the aesthetic cover).

This system, typically made of high-density mineral wool blankets, ceramic fibers, or intumescent materials, must achieve the same fire rating as the floor or wall assembly it is passing through (e.g., 2-hour or 3-hour rating).

Key Requirements:

• Movement Compatibility: The fire barrier itself must be flexible enough to compress and expand with the structural movement without degrading its fire-stopping integrity.
• Testing: Only systems that have been tested and certified according to international standards (such as UL or ASTM) for both fire endurance and movement can be legally specified.

A professional supplier ensures that the chosen aluminum joint covers and the internal fire barrier joint systems are compatible and rated for the same building zone.

With our experience and high quality products, here at Kayan-Gulf, it is our duty to provide our clients with all the specifications and details they need, from expansion joints to fire sealants, to every other aspect of their structure.

Ensuring Success: Installation Details and Maintenance

The performance of an access flooring system is only as good as its installation. Poor installation details often lead to squeaking, lifting, or failure of the cover system under stress.

Critical Installation Details

1. Preparation: The joint opening must be clean, dry, and free of debris. Any spalled concrete near the joint edge must be repaired.
2. Anchoring: Anchor types (e.g., wedge anchors, epoxy anchors) must be suitable for the substrate and spaced according to the manufacturer’s specifications to withstand the anticipated loads.
3. Gapping: The cover system must be installed precisely in the center of its movement range (mid-point gapping) to allow for maximum movement capacity in both directions (expansion and contraction).
4. Integration: The fire barrier joint systems must be installed before the aluminum joint covers are secured, ensuring they are compressed or fitted correctly within the joint void.

Maintenance

Regular inspection is essential, especially for seismic joint covers which may require checking after a significant tremor. Maintenance usually involves ensuring all anchor bolts are secure and that debris hasn’t settled deep within the joint void, impeding movement.

The expansion joint covers in malls and hospitals are vital safety and structural components that demand specialized knowledge. Whether you are specifying a durable floor expansion joint to handle heavy rolling loads or integrating a reliable wall/ceiling joint with a certified fire barrier joint system, partnering with an expert who provides high-quality aluminum joint covers and meticulous installation details is the key to protecting the long-term integrity and safety of the structure.
