In technology-driven environments—from server rooms and data centers to cleanrooms and electronic manufacturing facilities—the greatest threat to equipment is often invisible: Electrostatic Discharge (ESD).
ESD events, even those too small for a human to feel, can irreversibly damage sensitive electronic components, leading to massive financial losses and operational downtime.
The solution is not merely surface-level. It requires an integrated system that manages static electricity across the entire floor plane: the ESD raised access floor.
This specialized flooring is foundational to static control and provides the necessary infrastructure for critical services beneath the surface.
The Necessity of Static Control: Beyond Surface Solutions
Let us explain why should you make such an investment.
An ESD raised access floor system serves two primary functions simultaneously:
- Static Management: It creates a safe pathway for electrostatic charges to be neutralized and directed away from sensitive equipment, ensuring the environment maintains optimal conductivity.
This is crucial for environments requiring static dissipative flooring. - Infrastructure Housing: The space beneath the floor accommodates crucial cabling, ventilation, and plumbing, allowing for flexibility, easy maintenance, and future expansion.
This accessibility is achieved through standardized 600×600 panels.
Components of the ESD Raised Access Floor System

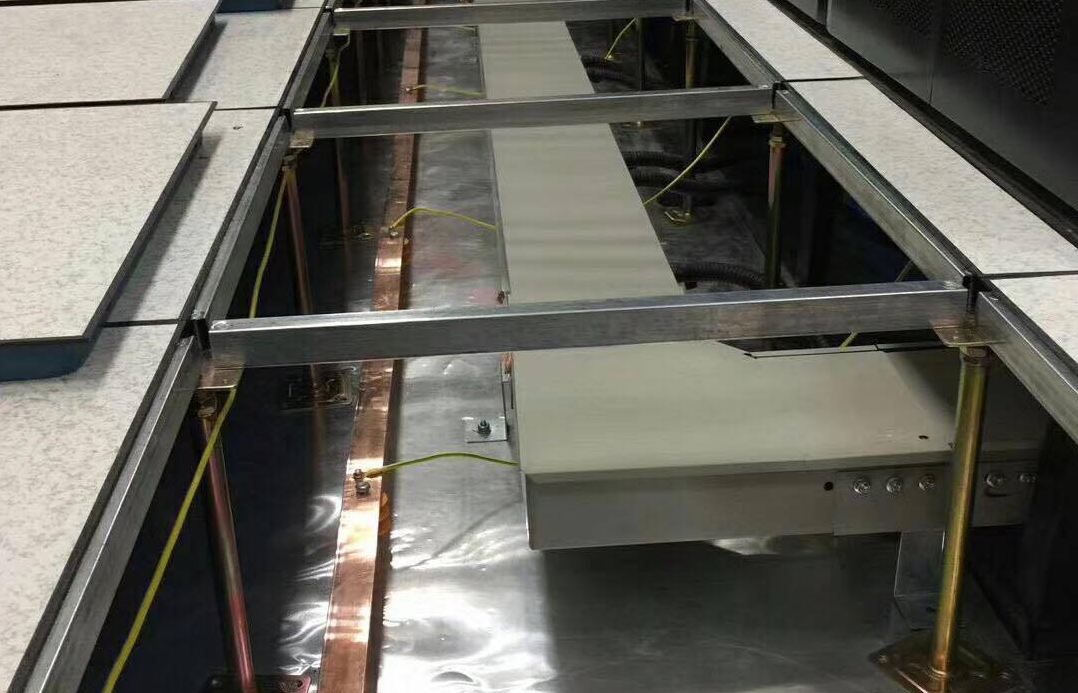

A true ESD control system is a carefully engineered assembly of specialized components working together to achieve effective grounding:
- Standardized Panels: The floor surface is comprised of interlocking 600×600 panels.
These panels are precision-engineered for flatness and load-bearing capacity and are easily removable for access to the plenum beneath. - The Substructure: This includes pedestals and stringers (cross-members) that support the panels and create the space for the grounding grid.
- The Grounding Grid: A dedicated grounding grid of copper foil or aluminum tape is laid beneath the panels.
This grid ensures that any static charge picked up by the floor or accessories is reliably and immediately channeled to the facility’s central ground point. - The ESD Surface Finish: This is the top layer that gives the system its static-dissipative properties.
Achieving Conductivity: Static Dissipative Flooring Materials
The most critical factor in achieving reliable static management is the finish material applied to the 600×600 panels.
The goal is to create static dissipative flooring—a material that controls the flow of electrical charge rather than insulating it.
there are two primary types of static-dissipative finishes for the ESD raised access floor:
1. Antistatic HPL (High-Pressure Laminate)
Antistatic HPL is a highly popular choice for its durability and excellent aesthetic properties.
- Properties: Antistatic HPL panels offer high resistance to wear, scratches, and chemicals.
The static-dissipative material is integrated into the laminate layers during manufacturing, ensuring a consistent path to ground. - Best Application: Ideal for server rooms, computer labs, and office environments where a durable, aesthetically pleasing, and highly static-controlled surface is required.
2. Vinyl Tiles
Vinyl tiles (or conductive vinyl sheeting) are another reliable choice for static dissipative flooring.
- Properties: These vinyl tiles utilize carbon material embedded within the vinyl composition to maintain low electrical resistance.
They are often preferred in manufacturing environments, such as electronics assembly lines, due to their ease of repair and installation. - Best Application: Perfect for manufacturing, cleanrooms, and areas where equipment is frequently moved, as vinyl tiles provide robust and easy-to-maintain static protection.
Key Specification Details
When designing your ESD raised access floor system, precision in technical specifications is vital:
- Resistance Ranges: True static dissipative flooring typically has a surface resistance between $1 \times 10^6$ and $1 \times 10^9$ Ohms.
Our systems meet or exceed international standards (e.g., ANSI/ESD S20.20).
- The Grounding Grid: The grounding grid must be installed and tested thoroughly to ensure electrical continuity.
A failure in the grid renders the entire ESD raised access floor ineffective.
An ESD raised access floor is a non-negotiable investment for protecting critical infrastructure.
By integrating durable 600×600 panels, a reliable grounding grid, and specialized surfaces like antistatic HPL or vinyl tiles, you create a controlled environment that minimizes the risk of catastrophic ESD damage.
Kayan-Gulf specializes in high-performance access flooring solutions that comply with the strictest international static control standards.
We provide the expertise needed to select the right static dissipative flooring material for your unique application.
Explore our full range of products and technical specifications on our products and solutions page.
Ready to secure your critical environment with a certified ESD raised access floor system? Contact Kayan-Gulf today for expert consultation!
