Walk into a commercial building in Riyadh or Jeddah and you most likely won’t notice the fire safety systems that are built into the walls, floors, and doors around you. That’s kind of the whole idea. Passive fire protection doesn’t really show off the way a sprinkler head or an alarm panel does. It just sits there, quietly giving a bit of extra time, when everything else starts going wrong.
Most people think of fire safety as extinguishers and alarms. Those matter, but they’re active systems things that need to detect a fire and respond to it. Passive fire protection works a bit differently, like it’s just kinda built into the structure itself. It doesn’t really need power, or detection gear, or even a person standing by to make it happen. So when a fire shows up, these things are already doing what they do, whether there is anyone nearby to nudge them or not.
What Passive Fire Protection Actually Means
Passive fire protection is about construction materials and assemblies made to confine fire and smoke inside a designated zone, for a certain length of time, typically tracked in steps like 30, 60, 90, or 120 minutes. The point isn’t to extinguish the blaze directly, it’s more about delaying the spread, and just enough so occupants can evacuate and firefighters can enter before the building’s structural backbone starts failing.

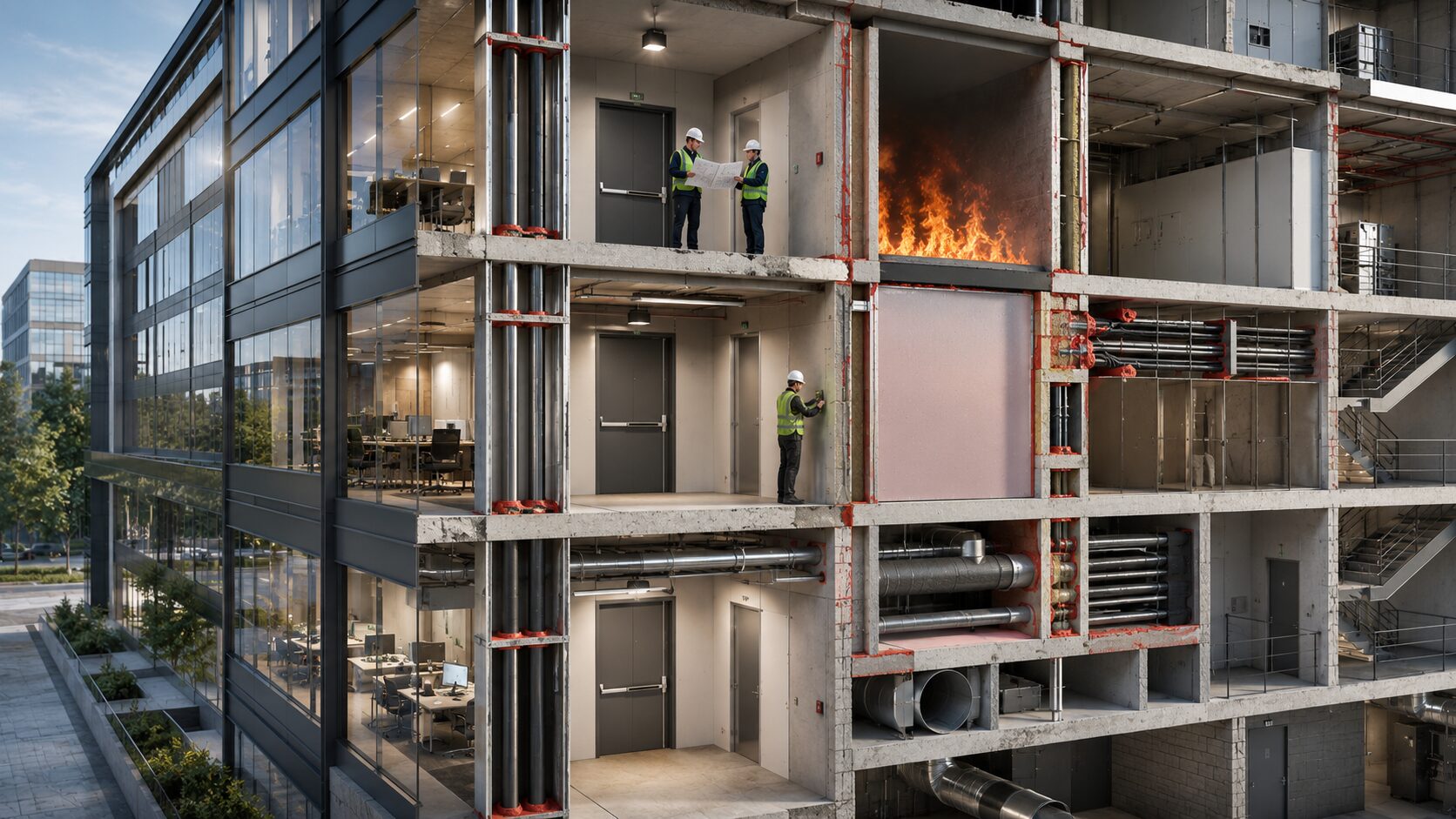

Imagine a tall commercial tower with many levels, server rooms, plant rooms, and all those MEP penetrations running through fire-rated walls. Every pipe, every cable tray, every duct section that goes through a rated wall or floor can become a soft spot. If that opening is not sealed in the right way, then the whole fire performance of the wall kind of loses its meaning, and smoke and flame will easily march through the gap like it was never there.
This is where fire stop systems come into the picture.
Fire Stop Systems: Closing the Gaps That Matter
Fire stop systems are used to seal openings and joints created by MEP services pipes, conduits, cable bundles, and ductwork wherever they cross through a fire-rated wall, floor, or ceiling. Without them, a building can have fire-rated construction on paper that fails in practice, because the fire simply routes around it through unsealed penetrations.
A proper fire stop sealant system needs to match the rating of the wall or floor it’s installed in, and it needs to be tested and certified for the specific type of penetration a bundle of electrical cables behaves very differently in a fire than a single insulated pipe. Getting this wrong is one of the most common gaps inspectors find in commercial buildings across Saudi Arabia, particularly in retrofit projects where new MEP routes get cut into existing rated walls after the original fire-stopping was signed off.
At Kayan Gulf, our fire stop sealant systems are supplied for exactly this purpose sealing penetrations around pipes, cables, and mixed-service openings in rated assemblies, so the wall or floor keeps the fire rating it was designed for.
Fire Rated Doors: The Weakest Point in Any Wall
A fire-rated wall is only as good as the door sitting in it. Doors get opened and closed hundreds of times a day, they take physical abuse, and hardware wears out which makes them one of the more vulnerable points in an otherwise solid fire compartment.
Fire rated doors are made with a solid core, intumescent seals that expand when the heat shows up to close those small gaps around the frame, and hardware rated so the whole assembly stays together during fire conditions. In commercial and industrial buildings hospitals, data centres, warehouses, high-rise offices these doors are usually put at stairwells, along corridors, and at compartment boundaries where keeping the fire contained for just 30 or 60 more minutes can change what happens during evacuation, like a lot.
Kayan Gulf supplies fire resistant steel doors for commercial and industrial projects. They’re built to keep the rating in real fire conditions not only to look good on a spec sheet.
Why Passive Systems Get Overlooked
Active fire protection tends to get the attention during design reviews sprinkler layouts, alarm zones, smoke detection coverage. Passive protection is less visible, so it’s easier to under-spec or value-engineer out during construction, especially when budgets tighten toward the end of a project.
The problem is that active and passive systems aren’t interchangeable. Sprinklers can fail, alarms can be delayed, and evacuation routes can get blocked. Passive fire protection is the backup that doesn’t depend on any of that working correctly. A building with strong passive protection and a partial active system failure still has a fighting chance. A building with excellent active systems but poorly sealed penetrations and non-rated doors can lose that fire rating in minutes.
For contractors and consultants working on projects for clients like Aramco, NEOM, or the Ministry of Housing, passive fire protection isn’t a line item to trim it’s often what determines whether a building meets Saudi Civil Defence requirements and international codes like NFPA in the first place.
Building a Complete Fire Safety Solution
A commercial building’s overall fire safety solution really comes down to how well the passive and active systems work together. That means:
- Fire-rated walls and floors sized correctly for the compartmentation strategy
- Fire stop systems sealing every MEP penetration to match the assembly rating
- Fire rated doors installed with certified frames and hardware, not just a rated leaf dropped into a standard frame
- Regular inspection, since fire stopping gets disturbed every time new cabling or piping is run through a wall
None of this works as a one-time installation and forget approach. Buildings change over their lifespan tenants renovate, new equipment gets installed, cabling gets added and every one of those changes is a chance for a fire stop detail to get missed.
Working With the Right Supplier
Passive fire protection is a specialized category, and not every construction materials supplier stocks products that are actually tested and certified for the assemblies they’re going into. Kayan Gulf supplies fire stop sealant systems and fire resistant steel doors across Saudi Arabia and the GCC, alongside our other building material lines, for contractors and consultants who need products backed by proper certification rather than generic claims.
If you’re specifying passive fire protection for a commercial project whether it’s sealing MEP penetrations in a new build or replacing non-compliant doors in an existing structure get in touch with our team for product details and project-based support.
