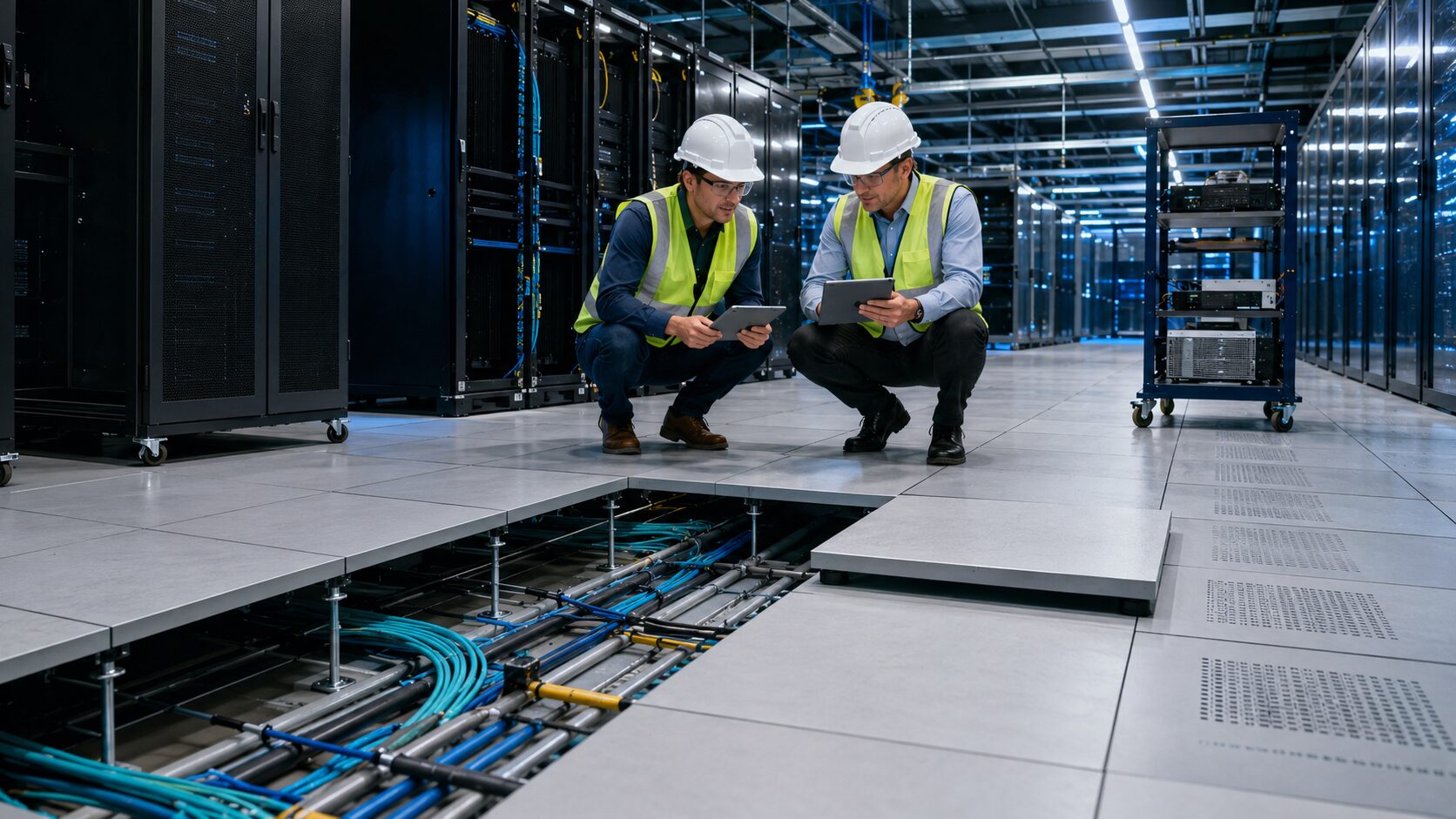

Raised floor load ratings describe different ways an access-floor system is tested against equipment, traffic and structural loading. However, terms such as concentrated load, uniform load, rolling load and ultimate load describe different conditions and should not be combined into one generic capacity figure.
For this reason, engineers should read the complete manufacturer load table rather than compare products from a single kg/m² value. Deflection, permanent set, rolling-load cycles and understructure performance can be just as important as the headline load number.
A raised-floor load rating only has meaning when the load type, test method, permitted deflection and tested system configuration are known. Concentrated load tests a localized force, uniform load spreads force across an area, rolling load simulates moving wheels or casters, and ultimate load evaluates failure strength. These values are not interchangeable.
What Does a Raised Floor Load Rating Actually Mean?
A load rating is not simply a statement of how “strong” a floor is. Instead, it describes how a product or system behaved under a defined test condition.
The Test Condition Changes the Meaning
For example, placing one heavy equipment foot near the center of a panel creates a different structural condition from spreading the same total force across the entire panel surface.
Likewise, moving a loaded cabinet across the floor on casters is different from leaving the cabinet stationary. Therefore, one published load figure cannot automatically describe every real project condition.
Technical rule: always ask what type of load was tested, how it was applied and what deflection or permanent-set limit was used.
Panel Load Rating vs Complete-System Performance
Raised flooring is an assembled system. A structural panel sits on pedestals and may also use stringers, bracing or other supporting components.
Why the Understructure Matters
A strong panel does not automatically guarantee a strong finished floor. Pedestal height, stringer configuration, base stability, installation quality and perimeter conditions can all influence the installed system.
Consequently, consultants should verify whether a stated rating applies to the panel alone or to the complete tested floor configuration.
For more information about the supporting structure, read our raised floor pedestals and stringers technical guide .
Concentrated Load
A concentrated load applies force to a relatively small area of the floor. This is particularly important for equipment that transfers weight through feet, legs, support points or small casters.
Typical Real-World Examples
- server racks;
- electrical cabinets;
- UPS equipment;
- control panels;
- laboratory equipment; and
- heavy technical furniture.
Because the load is localized, the floor panel can experience bending even when the room’s overall load per square metre appears modest.
A room load stated only in kg/m² may hide a critical point-load condition. Equipment footprint and support geometry should be reviewed separately.
Uniform Load
Uniform load represents force distributed over a larger floor area. Manufacturers may report this value in units such as kN/m² or lb/m².
Why Uniform Load Is Different
Distributing force across a panel creates a different structural condition from applying the same total force through one small contact point.
Therefore, a high uniform-load value should never be used as a substitute for a concentrated-load rating when evaluating equipment feet or rack supports.
Rolling Load
Rolling-load testing evaluates repeated movement across a raised floor. This can be especially important during installation, maintenance and future equipment relocation.
Repeated Passes Matter
Some manufacturer specifications publish separate values for a small number of passes and for thousands of repeated passes. Consequently, the same floor may have different allowable values depending on the required cycle count.
Typical rolling loads can come from cabinets, carts, machinery or other wheeled equipment moving across the panel joints.
Ultimate Load
Ultimate load describes the load level associated with structural failure or the manufacturer’s defined ultimate test condition.
Ultimate Load Is Not the Normal Working Load
This is one of the most common mistakes when reading a datasheet. A high ultimate-load value does not mean the floor should routinely operate at that load.
Instead, project design should use the appropriate working or design load and the relevant deflection or safety requirements.
Do not compare one manufacturer’s ultimate load with another manufacturer’s design load. The test categories must match before the figures are meaningful.
Deflection & Permanent Set
Load capacity is not only about avoiding collapse. The amount a panel moves while loaded can also be important.
Deflection
Deflection is the temporary movement of the panel under an applied load. Excessive movement can create instability, uneven equipment support or an uncomfortable walking surface.
Permanent Set
Permanent set describes deformation that remains after the load is removed. In other words, the panel does not fully return to its original position.
For this reason, manufacturer tables should be read together with their stated deflection and permanent-set criteria.
Impact & Drop Testing
Impact tests examine how the panel responds to a sudden applied force rather than a gradually applied static load.
Why Impact Testing Exists
During construction or operation, tools, equipment or other objects may be dropped onto the floor. Therefore, some raised-floor systems include panel impact or drop-test information as part of their technical documentation.
Impact performance should remain separate from concentrated, rolling and uniform-load ratings because each test represents a different physical condition.
Pedestal Axial Load & Overturning Performance
The understructure also has its own structural tests. These values should not be confused with panel load ratings.
Pedestal Axial Load
Evaluates the pedestal’s ability to resist force applied along its vertical axis.
Overturning Moment
Evaluates resistance to a moment that could rotate or overturn the pedestal assembly.
Floor height can also affect lateral behaviour. As a result, high-floor installations may require heavier understructure, stringers or bracing depending on the approved system design.
How to Read a Raised Floor Load Table
When reviewing manufacturer data, do not start by looking only for the biggest number. Instead, identify exactly what each row means.
Confirm the panel model, surface, pedestal and stringer configuration used for the published data.
Determine whether the value is concentrated, uniform, rolling, ultimate, impact or an understructure test.
Do not compare kN, kN/m², kilograms and pounds without understanding what each value represents.
Check whether the rating includes a maximum permitted deflection or permanent set.
A 10-pass value and a repeated thousands-of-passes value should not be treated as identical.
Manufacturer test procedures or applicable standards should accompany the published rating.
Manufacturer Example: HT FS800 HPL System
The documented HT FS800 HPL raised access floor from Changzhou Huateng Access Floor provides a useful example because its technical specification separates several different structural tests rather than presenting one generic capacity figure.
HT FS800 Documented Test Values
| Test / Rating | Documented Value | What It Represents |
|---|---|---|
| Panel Size | 600 × 600 × 35 mm | Documented FS800 HPL panel dimensions. |
| Concentrated Design Load | 800 lb / 3.56 kN | Localized design loading on the panel. |
| Ultimate Load | 2,530 lb / 11.25 kN | Ultimate structural test value. |
| Uniform Load | 17.78 kN/m² | Load distributed over the floor area. |
| 10-Pass Rolling Load | 2.94 kN | Rolling-load performance over a limited number of passes. |
| 10K-Pass Rolling Load | 2.45 kN | Repeated rolling-load performance. |
| Drop Impact | 45 kg from 914 mm | Panel response to impact loading. |
| Pedestal Axial Test | 44,800 N per pedestal | Vertical strength of the pedestal assembly. |
| Pedestal Overturning Moment | 113 N·m | Resistance to overturning moment. |
These figures apply specifically to the documented HT FS800 system and should not be generalized to every raised floor supplied by Kayan Gulf or manufactured by Huateng.
Why This Example Matters
If someone described this system simply as “a 17.78 kN/m² raised floor,” important information would disappear. The concentrated load, rolling-load cycles, ultimate load, impact performance and pedestal tests all describe different aspects of the system.
That is why technically comparable quotations require more than one headline capacity number.
Common Raised Floor Load-Rating Mistakes
Using kg/m² for Everything
Distributed area loading does not replace concentrated or rolling-load evaluation.
Comparing Different Test Types
Ultimate load should not be compared directly with another system’s design load.
Ignoring Deflection
A floor may avoid failure yet still move more than the project permits.
Ignoring Rolling Cycles
Repeated equipment movement can require a different rating from a limited-pass test.
Ignoring Understructure
Panel strength alone does not describe pedestal or lateral system performance.
Generalizing One Product
Manufacturer values belong to the exact tested model and configuration.
Load Rating vs Project Load Selection
This guide explains what the different load ratings mean. Selecting the correct floor for an actual project is a separate task.
Project selection requires equipment weights, rack footprints, caster loads, movement routes, floor height, understructure and consultant requirements.
For that decision process, continue to Kayan Gulf’s raised floor load capacity and project-selection guide .
Need a Raised Floor Load Review for a Saudi Project?
Kayan Gulf can review BOQs, equipment requirements, floor heights and manufacturer technical data when coordinating raised-floor systems for projects in Saudi Arabia.
Related Raised Flooring Guides
To understand the supporting structure behind these ratings, read our raised floor pedestals and stringers guide .
If you need to determine the appropriate rating for real equipment, continue to the raised floor load capacity selection guide .
Data-center-specific loading and equipment considerations are covered in our data center raised flooring guide .
Frequently Asked Questions About Raised Floor Load Ratings
What is a raised floor load rating?
What is concentrated load?
What is uniform load?
What is rolling load?
What is ultimate load?
What is raised floor deflection?
What is permanent set?
Is kg/m² enough to specify a raised floor?
Does a higher ultimate load mean a better floor?
Technical Reference
- Changzhou Huateng Access Floor Co., Ltd. — HT FS800 HPL Access Floor / HT FS-B-PST Understructure Technical Specification.
- Manufacturer specification references CISCA test procedures for the documented FS800 system.
Manufacturer-specific figures in this article apply only to the stated product and configuration. Final project selection should follow the consultant specification, equipment schedule and approved manufacturer documentation.
