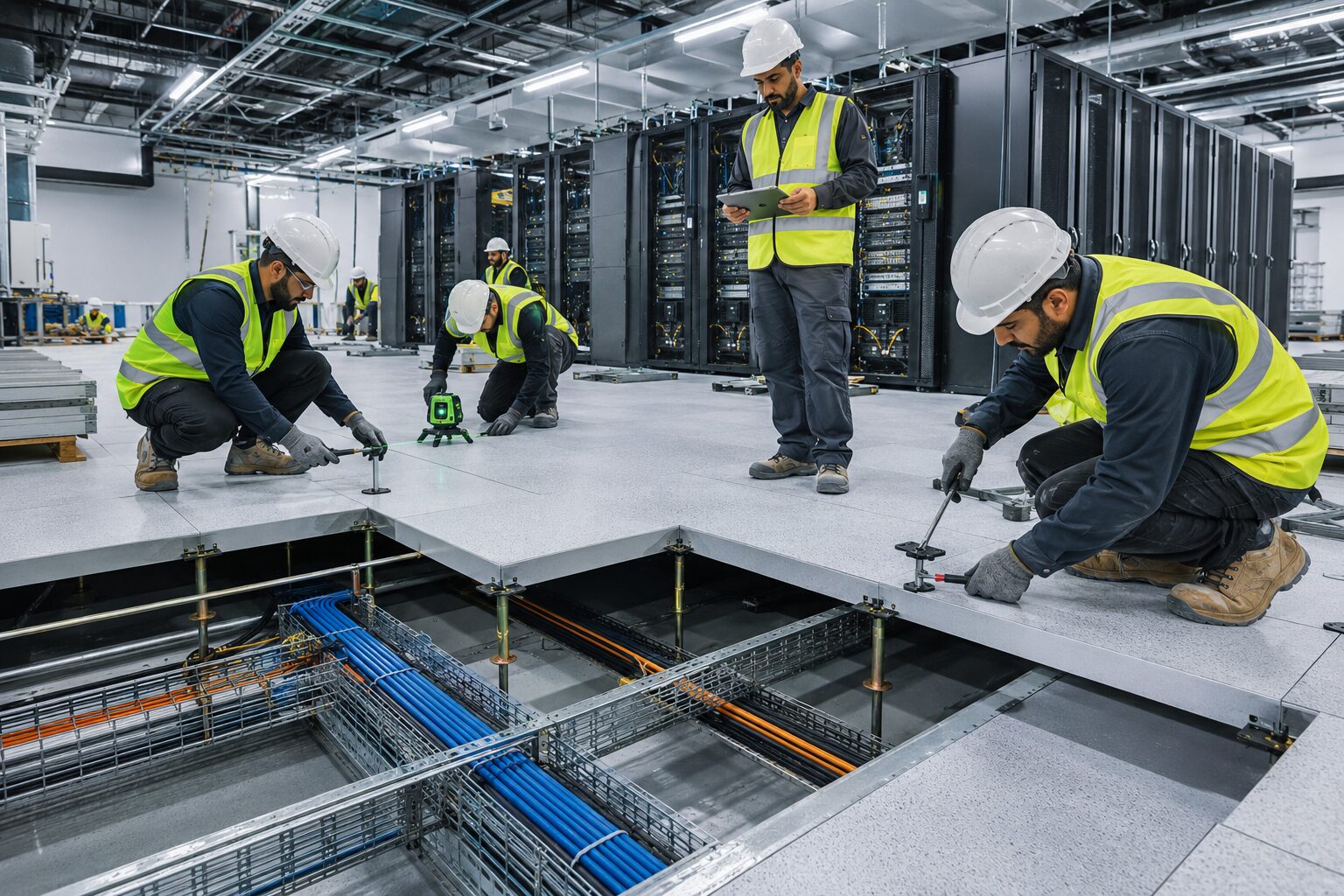

Raised access flooring installation errors often begin long before the final panel is placed. Incorrect survey data, poor datum setting, unstable pedestals, rushed perimeter cuts and uncoordinated service openings can all create rocking panels, uneven joints, noise or difficult maintenance after handover.
The safest approach is to treat installation as a controlled sequence. The substrate, grid, understructure, panels, interfaces and final inspection should all follow the approved drawings and the exact manufacturer’s installation requirements.
The most common raised-floor installation mistakes are starting without a proper slab survey, setting an incorrect datum, poor pedestal leveling, failing to lock the understructure, using the wrong system for the required loads or height, cutting panels without coordination, ignoring perimeter support and skipping final stability checks. Many of these problems can be prevented before installation begins.
Installation Error vs Design or Specification Error
Not every raised-floor problem is caused by the installer. Sometimes the selected product was never suitable for the required load, floor height, finish or operating environment.
Execution Error
Incorrect leveling, loose components, bad cuts or poor panel placement during site installation.
Coordination Error
Equipment, floor boxes or services were not coordinated with the raised-floor layout.
Selection Error
The selected panel or understructure does not satisfy the actual project requirement.
This distinction matters because changing installation workmanship cannot correct an unsuitable product selection.
Skipping the Subfloor Survey
Installing pedestals before checking the structural slab can turn a manageable level variation into a floor-wide adjustment problem. High and low points influence pedestal adjustment and finished floor level.
What Can Go Wrong?
Installers may repeatedly adjust individual supports while the panel grid progresses. As a result, maintaining a consistent final level becomes more difficult.
Starting from the Wrong Datum or Grid
A raised floor is modular. Therefore, a poor starting reference can create narrow perimeter cuts, badly positioned floor boxes or awkward interfaces at doors and walls.
Huateng’s published stringer-system installation guidance begins by establishing a datum and grid before the main floor is laid.
Poor Pedestal Height Adjustment & Leveling
Pedestals establish the final floor elevation. If adjacent supports are not correctly adjusted, panels may rock, joints may become uneven and the walking surface can feel unstable.
Level the System, Not Just One Panel
Checking only individual panels can hide gradual variation across the room. Instead, installers should continuously verify the floor against the project level and the selected manufacturer’s tolerances.
Leaving Pedestals, Stringers or Locking Components Loose
Correct position is not enough. Where the selected system requires screws, locking nuts, stringer connections or pedestal fixing, those components must be completed according to the manufacturer method.
Huateng’s stringered installation sequence, for example, includes adjustment of the floor followed by locking the pedestal nuts and fixing the stringers and pedestals as required by that system.
Trying to Solve a Load Problem by Changing Pedestal Spacing
Heavy equipment requirements should not be solved on site by arbitrarily moving pedestals closer together. Panel dimensions, pedestal positions, stringers and load ratings belong to the tested system configuration.
Important: if the required equipment load exceeds the selected floor’s capability, use an appropriate tested system or engineered support arrangement. Do not improvise the panel grid.
Review our raised floor load-capacity selection guide for project-specific load selection.
Installing Before the Site Is Ready
Raised-floor installation should not be isolated from the wider construction sequence. Dust, ongoing wet works, uncontrolled environmental conditions and incomplete overhead works can affect the finished installation.
Follow Product-Specific Environmental Limits
Different panel systems can have different storage and installation requirements. Consequently, use the exact manufacturer limits rather than a universal temperature or humidity rule.
Assuming Every Raised Floor Requires the Same Grounding Detail
The previous version of this article treated grounding as though every technical raised floor required the same arrangement. That is too broad.
Grounding or bonding should follow the selected floor system, electrical design and any applicable ESD requirement.
Where formal electrostatic control is required, see our ESD raised access flooring technical guide .
Poor Coordination with Floor Boxes, Cables & MEP Services
Floor panels are often cut only after the raised floor has already been installed. If service openings were not coordinated earlier, installers may be forced to create large or badly positioned cutouts.
Cutouts Can Affect the Panel
Openings remove material from the panel and can affect local structural behaviour. Therefore, unusual cutouts should be reviewed before fabrication or site cutting.
Rushing Perimeter Cuts & Edge Support
Walls, columns and irregular boundaries usually require cut panels. Poor measuring or unsupported edges can create visible gaps, movement and weak perimeter conditions.
Huateng’s installation guidance specifically treats perimeter cutting as a later controlled stage after the main panel field has been positioned.
Forcing Panels into Position or Ignoring Joint Alignment
Panels should sit correctly on the supporting system without being forced into a distorted grid. Misaligned joints can indicate a problem with the datum, pedestal position or previous panel rows.
Correct Errors Early
Small alignment errors become harder to correct as more rows are installed. Therefore, check the panel pattern and joint lines continuously rather than waiting until the room is complete.
Treating Manufacturer Instructions as Generic Advice
Raised-floor systems can differ in pedestal heads, stringer connections, adhesives, locking arrangements, panel edges and installation tolerances.
A crew familiar with one system should not assume that another manufacturer’s details are identical.
Skipping the Final Walking & Stability Inspection
A floor can look visually complete while individual panels still rock, move or make noise.
Huateng’s published acceptance guidance includes walking the completed floor and checking for movement, noise and stability, together with surface and joint inspection.
Manufacturer Installation Sequence: What It Tells Us
Huateng’s published stringer-system installation guidance provides a useful example of the logical sequence behind a raised-floor installation:
- clean the substrate;
- survey the room and identify high and low points;
- establish the datum and panel grid;
- adjust pedestal heights;
- install and secure the understructure;
- place and align the main panel field;
- measure and complete perimeter panels and openings;
- correct areas that are not level; and
- complete final stability and finish checks.
The exact method still depends on the proposed floor system, but the sequence illustrates why skipping early survey and layout work often creates problems later.
Raised Floor Installation Inspection Checklist
Preventing Installation Problems Before Work Starts
The cheapest installation problem is usually the one prevented during coordination. Before releasing materials or starting the pedestal grid, contractors should confirm the floor system, FFH, equipment loads, service openings and approved drawings.
Our raised access flooring specification guide explains what should be defined before procurement, while our pedestal and understructure guide covers the supporting system in more detail.
Need Raised Floor Technical Support for a Saudi Project?
Kayan Gulf supplies raised access flooring systems sourced from international manufacturing partners. Send your BOQ, drawings, finished floor height, equipment requirements and project specification for product and technical coordination.
Frequently Asked Questions
What causes raised floor panels to rock?
Should the concrete slab be surveyed before raised-floor installation?
Can installers change pedestal spacing for heavier equipment?
Does every raised floor need grounding?
When should perimeter panels be cut?
What should be checked before raised-floor handover?
Technical & Manufacturer References
- Changzhou Huateng Access Floor Co., Ltd. — Raised Floor Construction: Installation for Stringer System.
- Project-specific manufacturer installation manuals, approved shop drawings and technical submittals should govern the exact installation method.
Installation details vary between raised-floor systems. Final site work should follow the approved manufacturer documentation, consultant requirements and coordinated project drawings.
